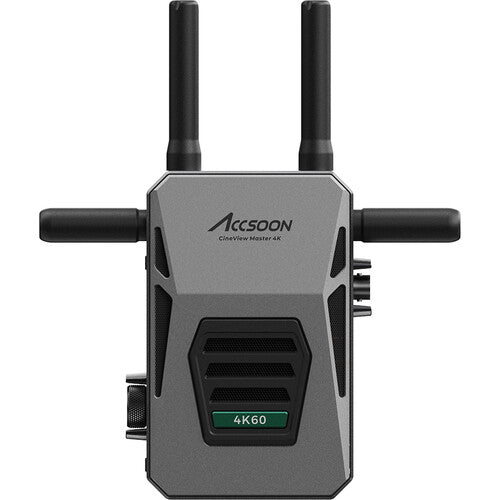

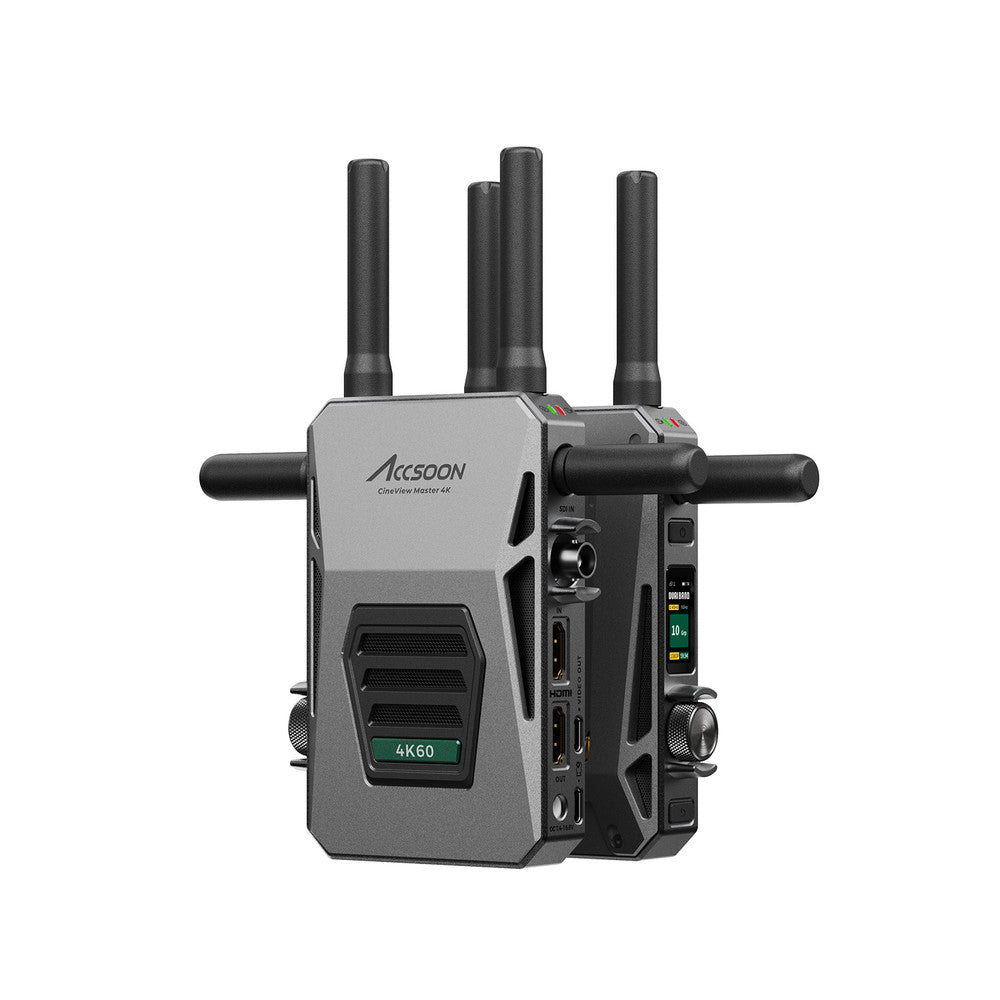

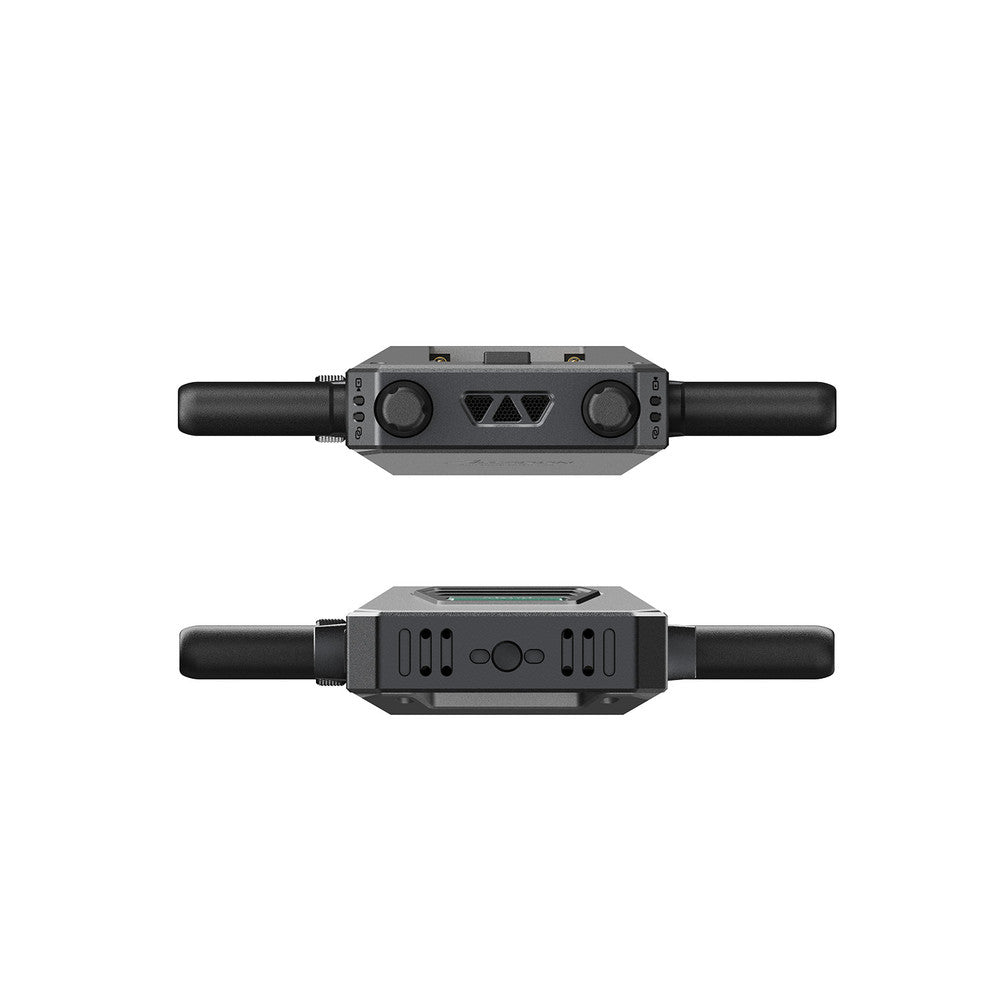

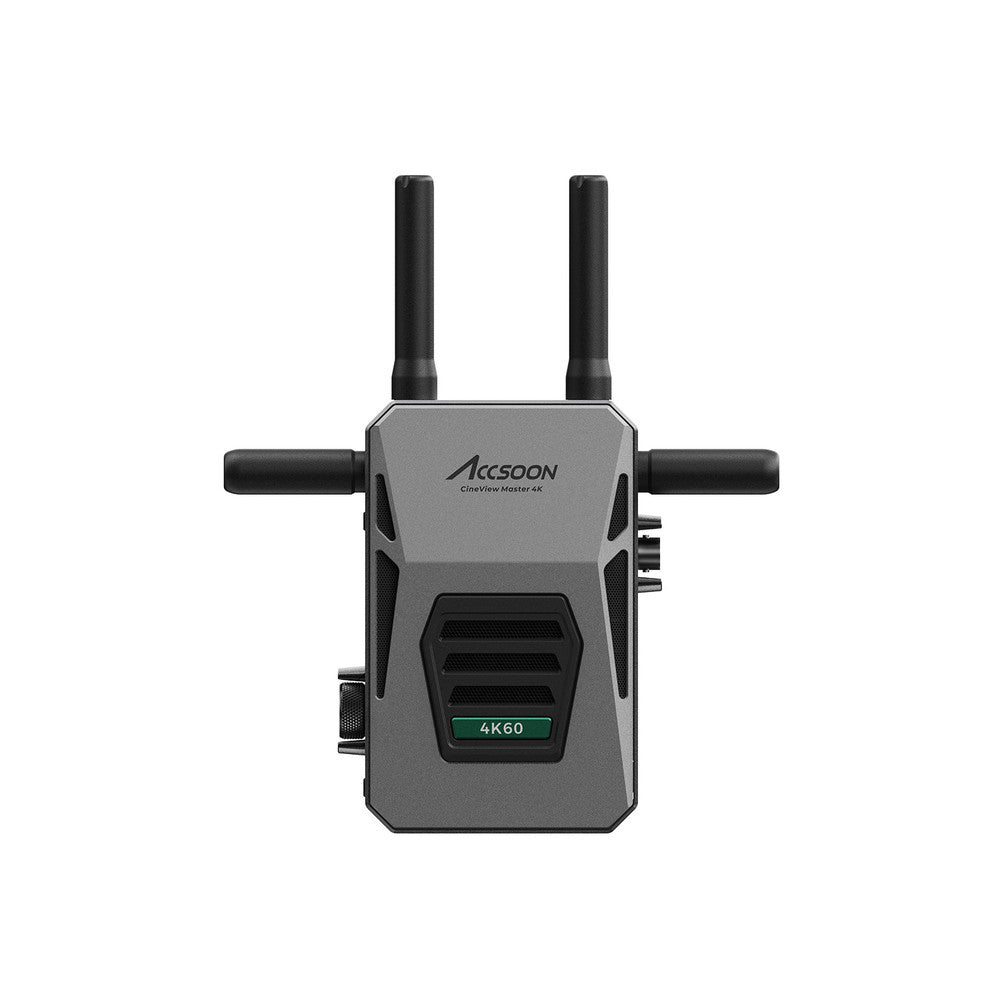

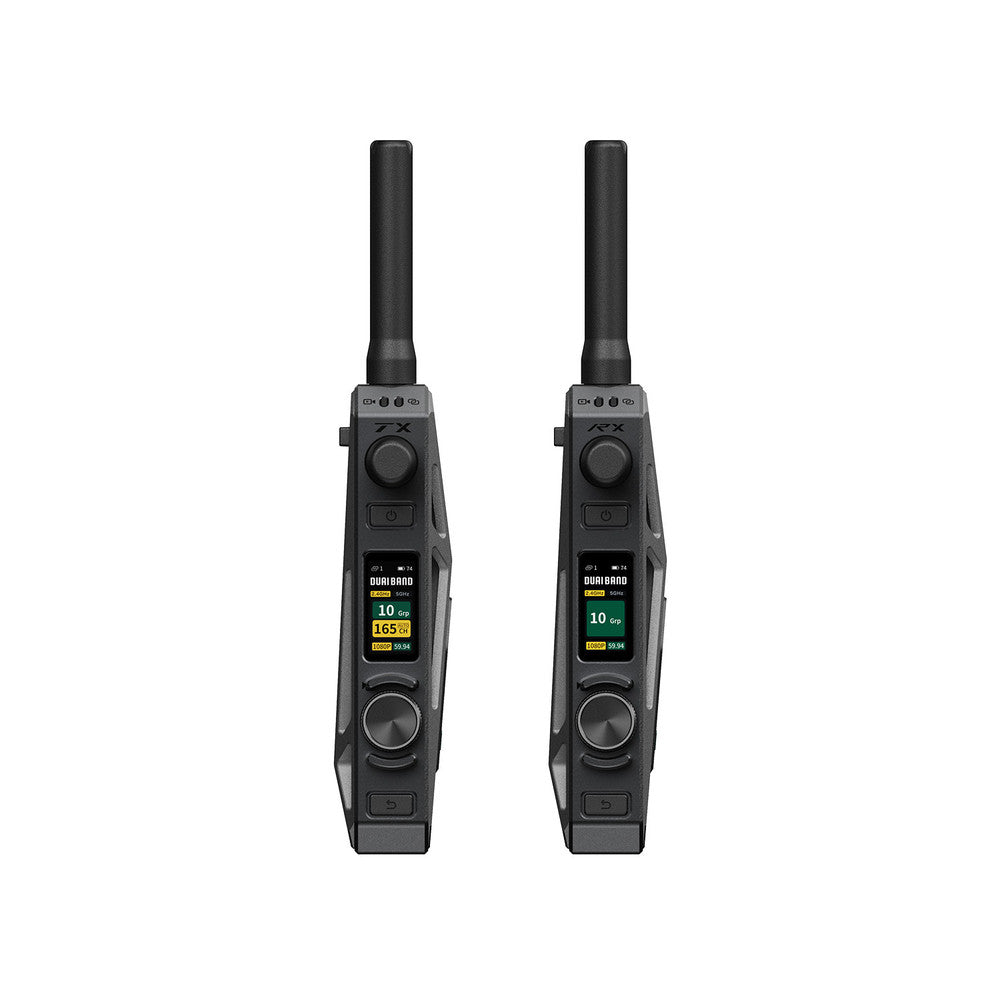

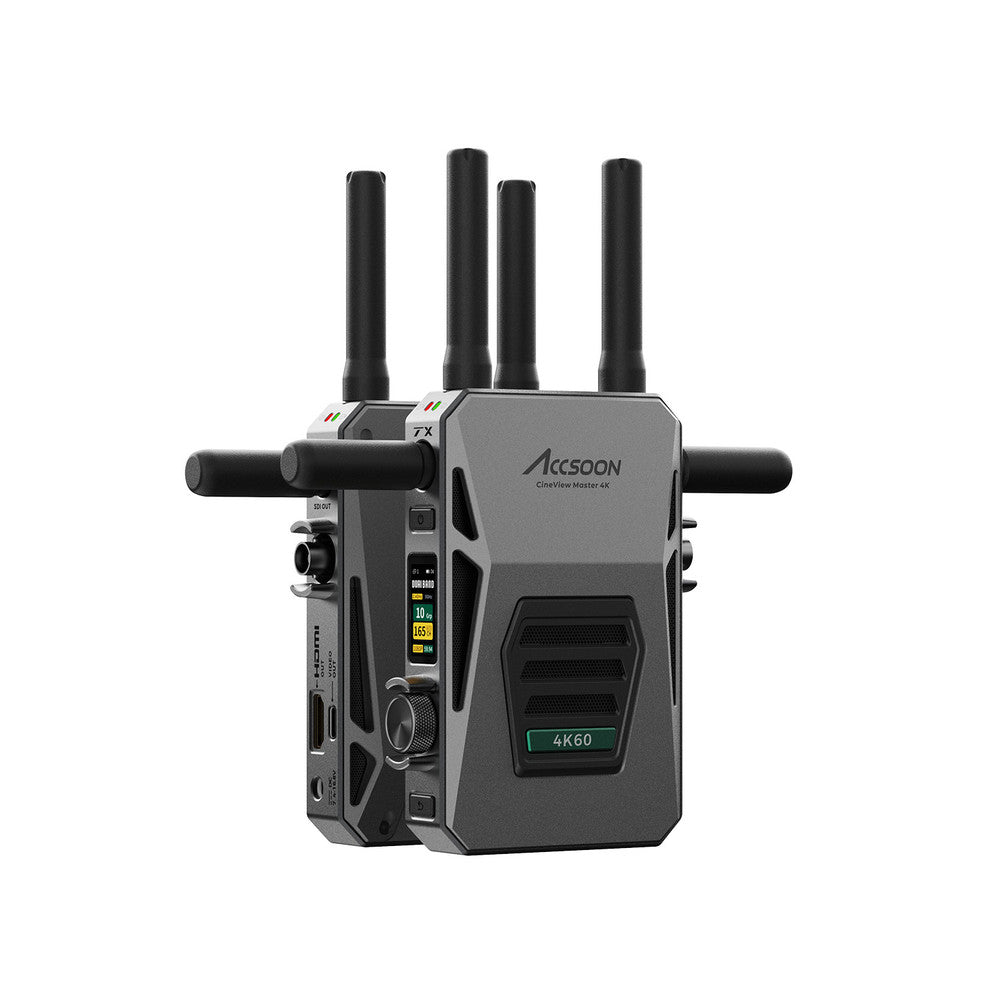

Accsoon CineView Master 4K Lite SDI/HDMI Wireless Video Transmitter
Accsoon CineView Master 4K Lite SDI/HDMI Wireless Video Transmitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
If you order from our website Monday-Friday by 2:30 PM PST, we will ship your order the same day. We do not ship on the weekends, so orders made on Saturday or Sunday will be shipped out on Monday. Learn more
- Tri-band wireless system with 6GHz 5GHz and 2.4GHz support
- 4K 60P Wi-Fi transmission up to 2.5 kilometers range
- Ultra-low latency of 25ms for 1080P content
- 35ms latency for 4K transmission for professional use
- Simultaneous wired and wireless monitoring for multiple devices
- 8K-capable processor with 400% increase in processing power
- Full 4K support for input output encoding and recording
- Frame.io integration for instant 4K video sharing
- HD-SDI and HDMI 2.0 inputs and outputs for versatile connections
- Includes transmitter antennas cold shoe mount and user manual
- CineView Master 4K Lite Transmitter ×1
- 2.4GHz/5GHz Antenna ×4
- Cold Shoe Mount Adapter ×1
- User Manual ×1
- Allen Key ×1
| Key Specs | Details |
|---|---|
| Tri-Band Transmission Technology | 6GHz, 5GHz, 2.4GHz frequencies |
| 4K 60P Wi-Fi Transmission Range | 2.5 kilometers (1.5 miles) |
| Latency for 1080P | 25ms |
| Latency for 4K | 35ms |
| Processor | 8K-Capable High-Performance A/V Processor |
| RTMS Protocol | RTMS 4.0 |
| 4K Support | Input, output, encoding, and recording |
| Frame.io Integration | Camera-to-Cloud |
| Hardware | HD-SDI and HDMI 2.0 inputs/outputs |
| Cooling | High-efficiency |
| Design | Modular |
| Multi-Device Connectivity | Signal to four wireless and one wired device |
| Wireless Range | 350m (No obstacles, no interference) |
| Number of Channels | 2.4/5GHz |
| Frequency Range | 2412 to 2472MHz, 5180 to 5580 MHz, 5660 to 5825 MHz |
| Battery Type | Sony Style NP-F (Not Included) |
| RF Power | 17dBm |
| Wi-Fi | 2.4GHz+5GHz (DFS supported) |
| Operating Temperature | -10°C to 40°C |

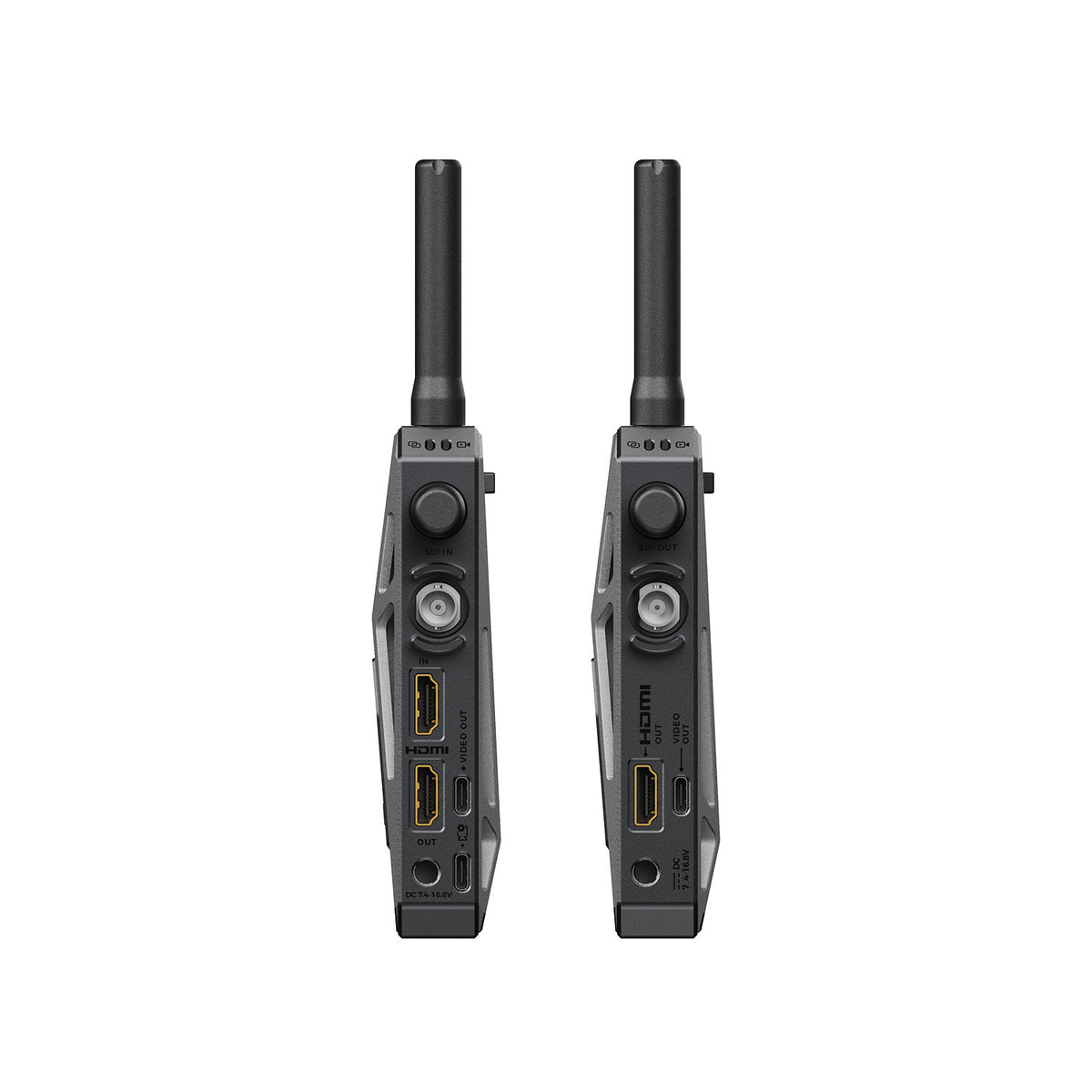

| Video Connectors | HDMI 2.0, 3G SDI, HDMI 2.0 Loop-out, USB Video Out, USB-C |
| Video Format | DCI 4K, UHD 4K, 1080p at various frame rates |
| LUT Support | .cube |
| Mounting | 1x 1/4"-20 Female (Bottom) |
| Warranty | 1 Year |
| Included Accessories | CineView Master 4K Lite Transmitter, 4 Antennas, Cold Shoe Mount Adapter, User Manual, Allen Key |
This transmitter allows you to send 4K video wirelessly, making it perfect for professional video production and live streaming.
Tri-Band Technology
This system features tri-band transmission technology, utilizing 6GHz, 5GHz, and 2.4GHz frequencies. This ensures a strong and stable connection even in crowded wireless environments, so you can focus on your shoot without worrying about signal loss.
Low Latency
With ultra-low latency as low as 25ms for 1080P content and 35ms for 4K, the CineView Master sets a new standard for wireless video systems.
Multi-Device Monitoring
The CineView Master allows for simultaneous wired and wireless monitoring. You can connect a cabled iPad or iPhone for monitoring while sending wireless video to up to four additional devices, making it easy for your team to collaborate on set.
Future-Proof Performance
Powered by a high-performance A/V processor with 8K capabilities, this system offers a significant boost in processing power. It supports full 4K across all functionalities, ensuring you're ready for future video standards.
