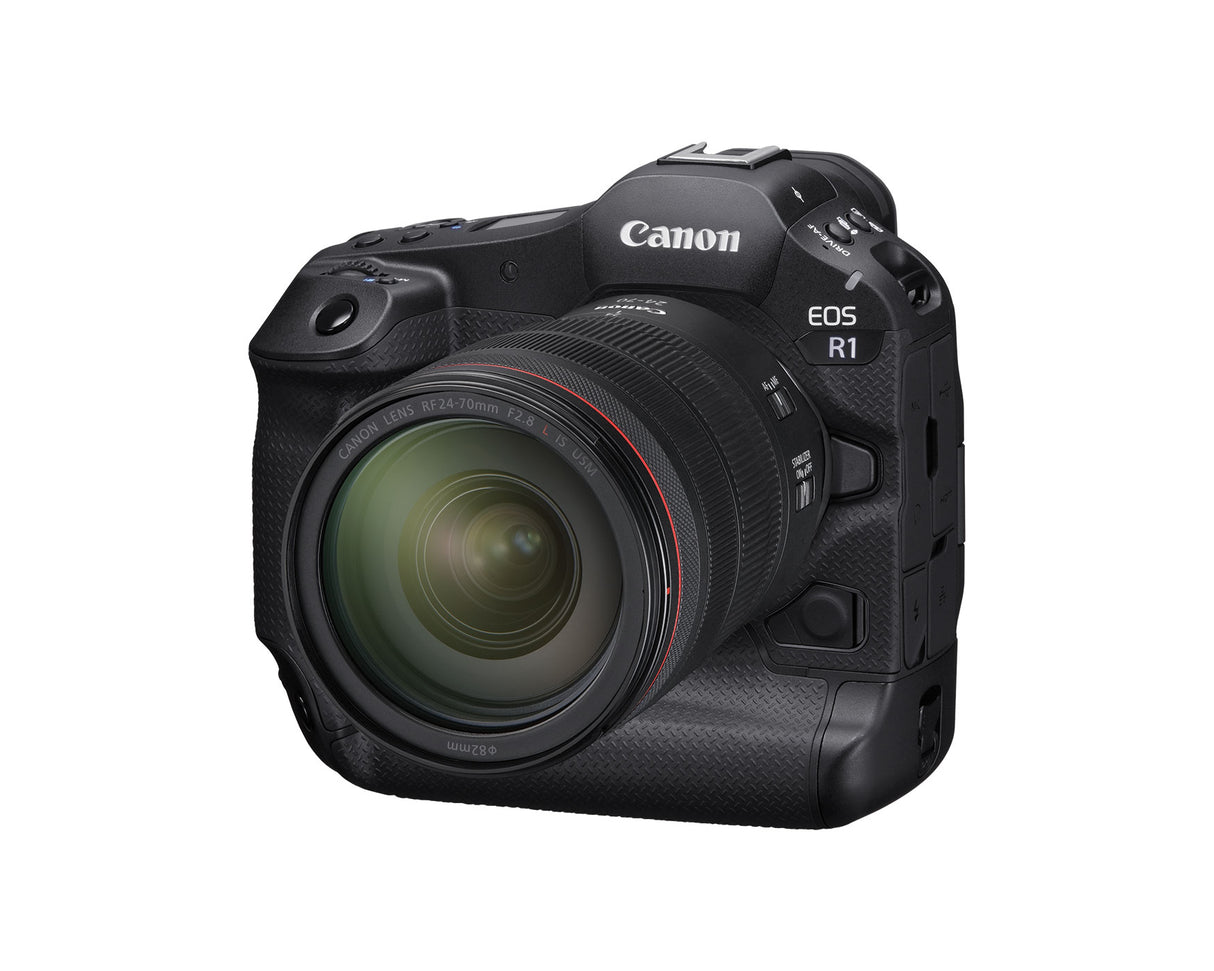

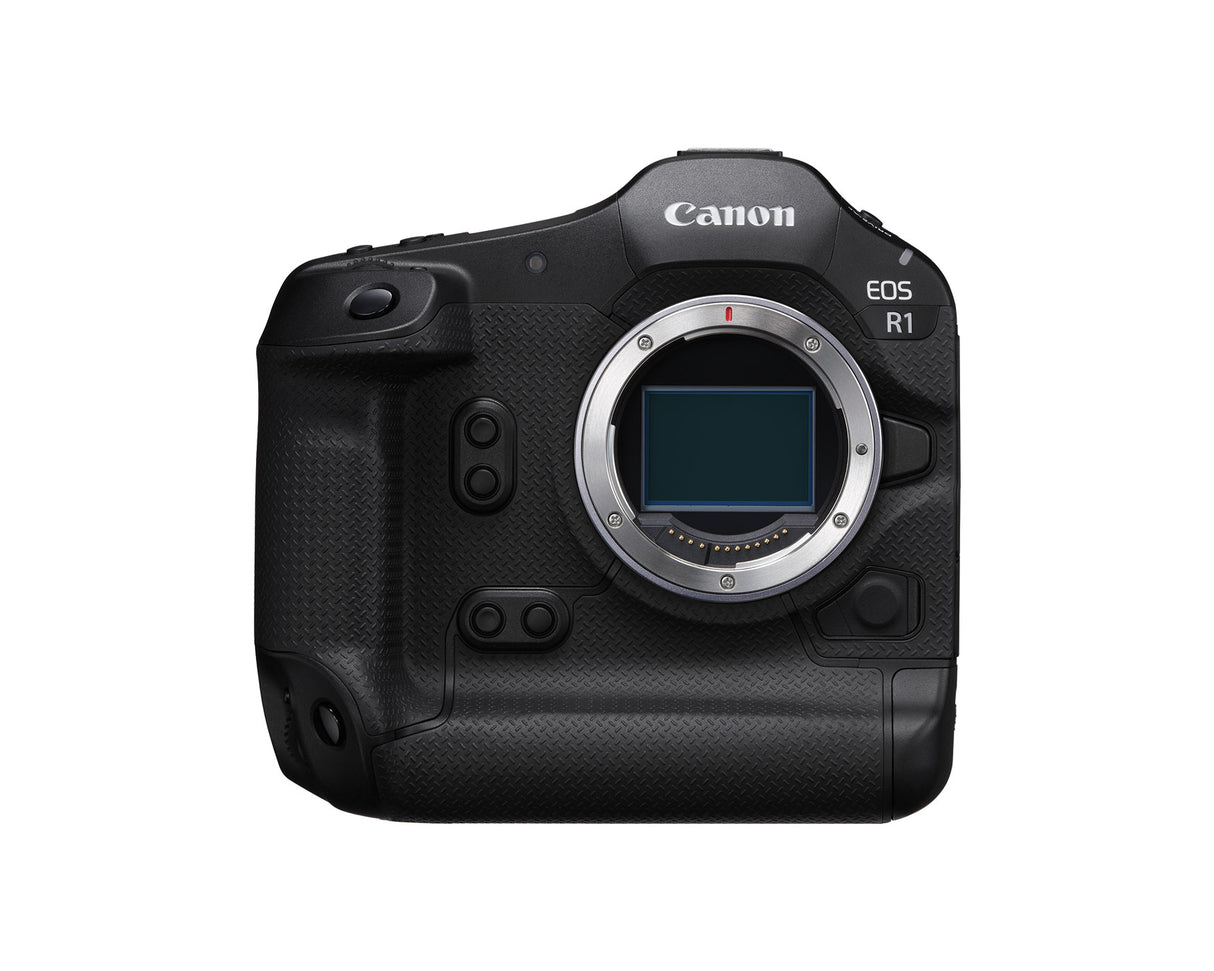

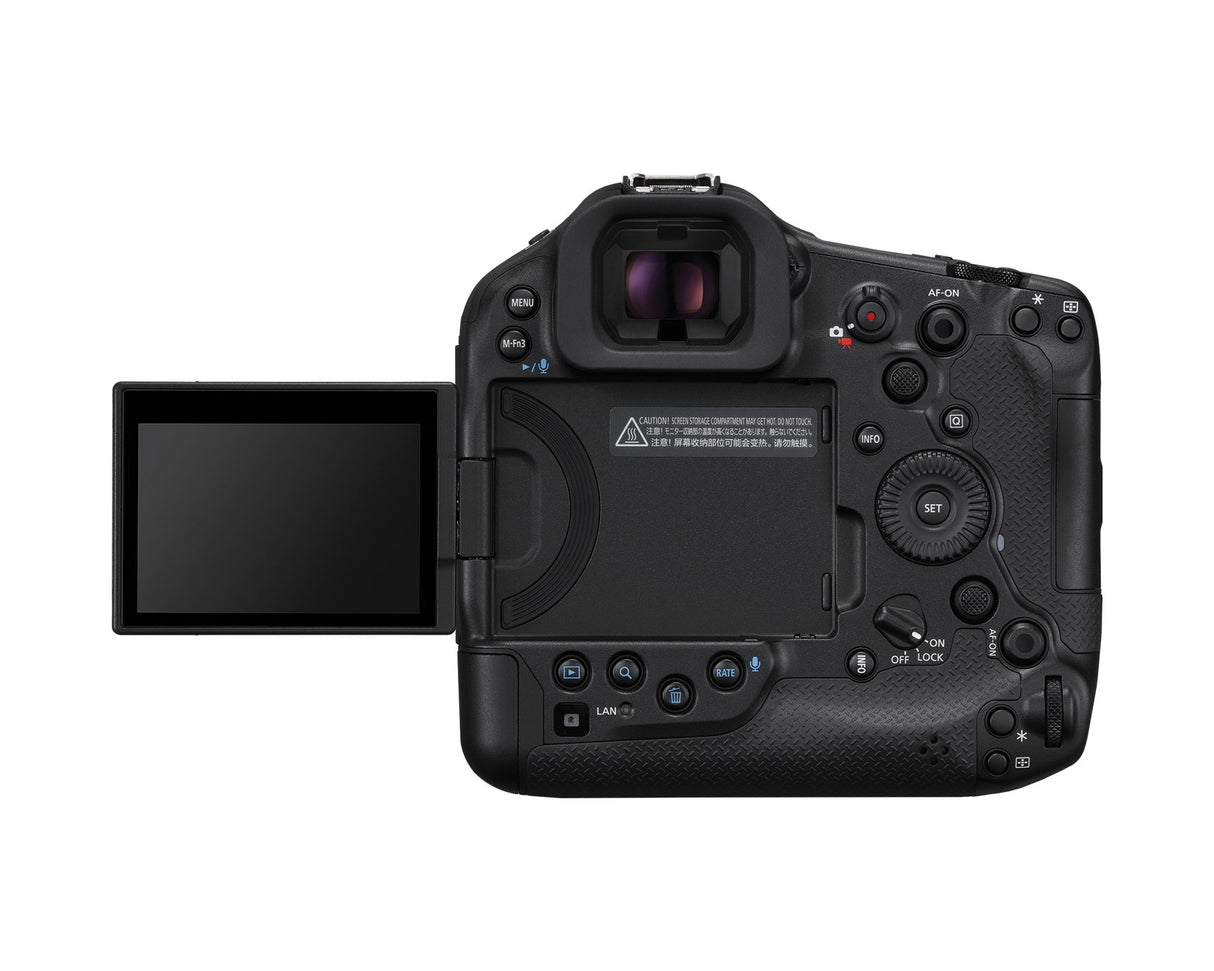

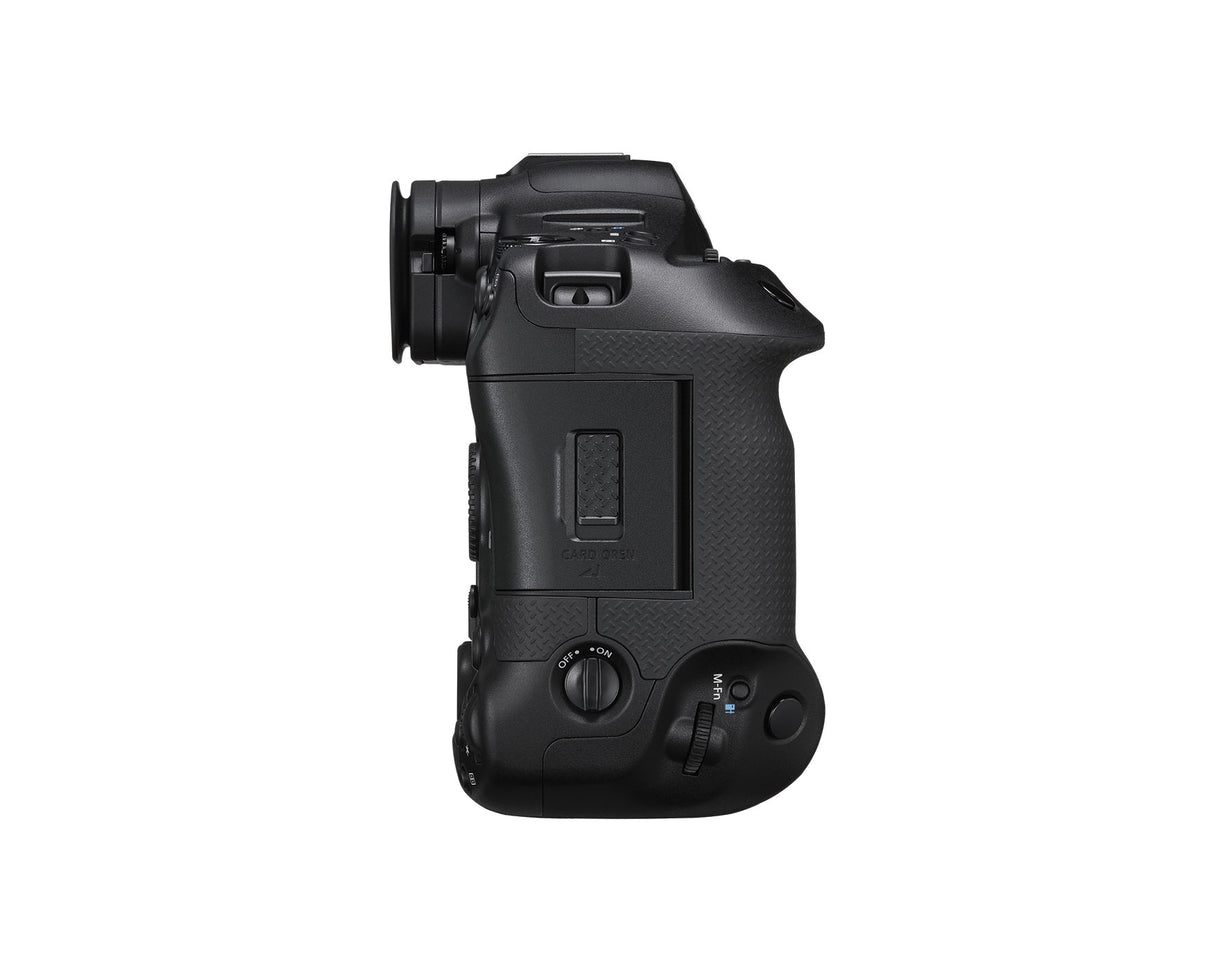

Canon EOS R1

24MP Full-Frame Stacked BSI CMOS Sensor,
DIGIC Accelerator + DIGIC X Processing,
Dual Pixel AF with Action Priority,
Improved Eye Control AF,
6K 60 Raw & 4K 120 10-Bit Internal Video,
Up to 40 fps/Pre-Continuous Shoot Mode,
9.44m-Dot 0.9x EVF/OVF Sim. View Assist,
3.0" 2.1m-Dot Vari-Angle Touchscreen LCD,
Vertical Grip, 2x CFexpress Type B Slots,
Wi-Fi 6E/2.5G Base-T Wired Ethernet

Canon EOS R1 Mirrorless Camera,
Canon LP-E19 Battery Pack (2700mAh),
Canon LC-E19 Battery Charger,
Canon ER-L1 Camera Strap,
Canon ER-iE Eyecup,
Canon ER-SC3 Shoe Cover,
Canon R-F-5 Camera Cover,
Canon IFC-100U Interface Cable (39.4"),
Battery Pack Cover,
Power Cord,
Limited 1-Year Manufacturer Warranty

<h5>Type</h5>



<table>
<tr>
<td>Type
</td>
<td>Digital interchangeable lens, mirrorless camera
</td>
</tr>
<tr>
<td>Image Processor
</td>
<td>DIGIC X (with DIGIC Accelerator co-processor)
</td>
</tr>
<tr>
<td>Recording Media
</td>
<td>(Two) CFexpress Type B card slots
<p>
• compatible with CFexpress 2.0 and VPG400
</td>
</tr>
<tr>
<td>Compatible Lenses
</td>
<td>Canon RF lens group (including RF-S lenses) When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
</td>
</tr>
<tr>
<td>Lens Mount
</td>
<td>Canon RF mount
</td>
</tr>
</table>


<h5>Image Sensor</h5>



<table>
<tr>
<td>Type
</td>
<td>Canon designed full-frame back-illuminated stacked CMOS sensor (compatible with Dual Pixel CMOS AF and Cross-type AF)
</td>
</tr>
<tr>
<td>Effective Pixels
</td>
<td>Approx. 24.2 megapixels
</td>
</tr>
<tr>
<td>Screen Size
</td>
<td>Approx. 36.0 x 24.0 mm
</td>
</tr>
<tr>
<td>Pixel Unit
</td>
<td>Approx. 6.00 µm square
</td>
</tr>
<tr>
<td>Total Pixels
</td>
<td>Approx. 26.7 megapixels
</td>
</tr>
<tr>
<td>Aspect Ratio
</td>
<td>3:2 (Horizontal: Vertical)
</td>
</tr>
<tr>
<td>Color Filter System
</td>
<td>RGB primary color filters
</td>
</tr>
<tr>
<td>Low Pass Filter
</td>
<td>Installed in front of the image sensor, non-detachable
</td>
</tr>
<tr>
<td>Dust Deletion Feature
</td>
<td>(1) Self Cleaning Sensor Unit
<p>
• Removes dust adhering to the low-pass filter.
<p>
• At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi-
<p>
cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).
<p>
• After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
<p>
• When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and
<p>
[Clean manually] cannot be selected.
<p>
(2) Dust Delete Data acquisition and appending
<p>
• The coordinates of the dust adhering to the low-pass filter are detected by a test shot and append-
<p>
ed to subsequent images.
<p>
• The dust coordinate data appended to the image is used by the EOS software to automatically
<p>
erase the dust spots.
<p>
• Not available with RF-S/EF-S lenses, in cropped shooting, during focus bracket shooting, in FAW
<p>
burst mode, or multiple-exposure shooting.
<p>
(3) Manual cleaning (by hand)
</td>
</tr>
</table>


<h5>Recording System</h5>



<table>
<tr>
<td>Recording Format
</td>
<td>Compliant to Design rule for Camera File system 2.0 and Exif 2.31*.
<p>
*Supports time difference information in Exif 2.31
</td>
</tr>
<tr>
<td>Image Format
</td>
<td>RAW: RAW / C-RAW
<p>
JPEG / HEIF: L / M / S1 / S2
<p>
Movies:
<p>
• RAW
<p>
• XF-HEVC S YCC422 10bit
<p>
• XF-HEVC S YCC420 10bit
<p>
• XF-AVC S YCC422 10bit
<p>
• XF-AVC S YCC420 8bit
</td>
</tr>
<tr>
<td>File Size
</td>
<td>Image
<p>
Quality
<p>
File Size
<p>
[Approx. MB]
<p>
Possible
<p>
Shots
<p>
[Approx.]*¹
<p>
Maximum Burst [Approx.]*
<p>
CFexpress
<p>
Card*¹
<p>
JPEG*2
<p>
L 8.3 37930 1000 or more
<p>
M 4.4 71490 1000 or more
<p>
S1 3.0 102820 1000 or more
<p>
S2 1.8 170290 1000 or more
<p>
HEIF*3
<p>
L 8.4 37720 1000 or more
<p>
M 4.9 64760 1000 or more
<p>
S1 3.5 89510 1000 or more
<p>
S2 2.1 147840 1000 or more
<p>
RAW
<p>
RAW 27.5 11530 1000 or more
<p>
C-RAW 12.4 25520 1000 or more
<p>
RAW+JPEG*2
<p>
RAW + L 27.5 + 8.3 8840 1000 or more
<p>
C-RAW + L 12.4 + 8.3 15250 1000 or more
<p>
RAW+HEIF*3
<p>
RAW + L 27.5 + 8.4 8230 260
<p>
C-RAW + L 12.4 + 8.4 13520 560
<p>
* 1: Number of shots available and maximum burst apply to 325 GB cards conforming to Canon testing standards.
<p>
* 2: When [HDR shooting (PQ): Disable] is set.
<p>
* 3: When [HDR shooting (PQ): HDR PQ] is set.
<p>
* Maximum burst as measured under conditions conforming to Canon testing standards (One-Shot AF, High-speed contin-
<p>
uous shooting +, JPEG/HEIF image quality: 8, ISO 100, Picture Style: Standard, and room temperature: 23°C / 73°F).
<p>
* File size, number of shots available, and maximum burst vary depending on shooting conditions (including cropping/
<p>
aspect ratio, JPEG/HEIF image quality, subject, memory card brand, ISO speed, Picture Style, and Custom Functions).
</td>
</tr>
<tr>
<td>File Numbering
</td>
<td>The following file numbers can be set:
<p>
1. File numbering methods
<p>
a. Continuous numbering
<p>
i. The numbering of captured images continues even after you replace the card.
<p>
b. Auto reset
<p>
i. When you replace the card, the numbering will be reset to start from 0001. If the new SD
<p>
card already contains images, the numbering will continue from the last recorded image in
<p>
the card.
<p>
2. Manual reset
<p>
a. Resets the file number to 0001, and creates a new folder automatically.
<p>
* When manually resetting the file number, folders can also be renamed
</td>
</tr>
<tr>
<td>RAW + JPEG / HEIF
<p>
Simultaneous
<p>
Recording
</td>
<td>Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is
<p>
supported
</td>
</tr>
<tr>
<td>Color Space
</td>
<td>Selectable between sRGB and Adobe RGB
</td>
</tr>
<tr>
<td>Picture Style
</td>
<td>(1) Auto
<p>
(2) Standard
<p>
(3) Portrait
<p>
(4) Landscape
<p>
(5) Fine Detail
<p>
(6) Neutral
<p>
(7) Faithful
<p>
(8) Monochrome
<p>
(9) User Defined 1–3
<p>
• In Scene Intelligent Auto, [Auto] will be set automatically.
<p>
• [Standard] is the default setting for [User Def. 1–3].
<p>
• A Picture Style file can be registered to User Def. 1/2/3
</td>
</tr>
</table>


<h5>White Balance</h5>



<table>
<tr>
<td>Settings
</td>
<td>(1) Auto (Ambience priority/White priority)
<p>
(2) Daylight
<p>
(3) Shade
<p>
(4) Cloudy*1
<p>
(5) Tungsten light
<p>
(6) White fluorescent light
<p>
(7) Flash
<p>
(8) Custom (Custom WB)
<p>
(9) Color temperature*2
<p>
*1: Effective also in twilight and sunset.
<p>
* White balance can be adjusted during movie recording
</td>
</tr>
<tr>
<td>Auto White Balance
</td>
<td>Option between ambience priority and white priority settings, using SET button
</td>
</tr>
<tr>
<td>White Balance Shift
</td>
<td>Blue/amber bias: ±9 levels
<p>
Magenta/green bias: ±9 levels
<p>
• Shifted from the color temperatue of the current WB mode.
<p>
• Blue/amber and magenta/green shift can be set at the same time.
<p>
WB Bracketing available, up to ±3 levels Blue/amber or magenta/green, via Quick Control Dial
</td>
</tr>
</table>


<h5>Viewfinder</h5>



<table>
<tr>
<td>Type
</td>
<td>OLED color electronic viewfinder; 0.5-inch, approx. 9.44 million dots
</td>
</tr>
<tr>
<td>Coverage
</td>
<td>Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at
<p>
approx. 25mm eyepoint).
</td>
</tr>
<tr>
<td>Magnification / Angle
<p>
of View
</td>
<td>Approx. 0.90x / Approx. 41.4 degrees (with 50mm lens at infinity, -1 m
</td>
</tr>
<tr>
<td>Eye Point
</td>
<td>Approx. 25mm (at -1 m-1 from the eyepiece lens end)
</td>
</tr>
<tr>
<td>Dioptric Adjustment
<p>
Range
</td>
<td>Approx. -4.0 to + 2.0 m-1 (dpt)*
<p>
*1: Dioptric adjustment lock mechanism
</td>
</tr>
<tr>
<td>Viewfinder Information
</td>
<td>(1) Maximum burst
<p>
(2) Possible shots/Sec. until self-timer shoots
<p>
(3) Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval
<p>
timer
<p>
(4) Shooting mode
<p>
(5) AF method
<p>
(6) AF operation
<p>
(7) Image quality
<p>
(8) Card
<p>
(9) Drive mode
<p>
(10) Metering mode
<p>
(11) No. of remaining shots for focus braketing, multiple exposures, or interval timer
<p>
(12) Electronic level
<p>
(13) Movie recording time available
<p>
(14) Battery level
<p>
(15) Image Stabilizer (IS mode)
<p>
(16) Histogram (Brightness/RGB)
<p>
(17) Quick Control button
<p>
(18) Anti-flicker shooting
<p>
(19) White balance/White balance correction
<p>
(20) Picture style
<p>
(21) Auto Lighting Optimizer
<p>
(22) Still photo cropping / Aspect ratio
<p>
(23) AF point (1-point AF)
<p>
(24) AEB/FEB
<p>
(25) View Assist
<p>
(26) HDR PQ
<p>
(27) Flash ready / FE lock / High-speed sync
<p>
(28) Electronic shutter
<p>
(29) Touch shutter / Create folder
<p>
(30) AE lock
<p>
(31) Shutter speed / Multi-function lock warning
<p>
(32) Aperture value
<p>
(33) Wi-Fi® function
<p>
(34) Wi-Fi® signal strength
<p>
(35) Bluetooth® function
<p>
(36) Exposure simulation
<p>
(37) Magnify button
<p>
(38) ISO speed
<p>
(39) Highlight tone priority
<p>
(40) Exposure compensation
<p>
(41) Exposure level indicator
</td>
</tr>
</table>


<h5>Autofocus</h5>



<table>
<tr>
<td>Focus Method
</td>
<td>Dual Pixel CMOS AF
</td>
</tr>
<tr>
<td>Cross-type AF
</td>
<td>Supported
<p>
* Dual Pixel CMOS AF has been vertical-line detection only with previous models, but the EOS R1 can perform not only
<p>
vertical-line detection but also horizontal-line detection by rotating the pupil division direction of the Gb pixels of the
<p>
CMOS sensor by 90 degrees.
<p>
* Cross-type AF functions under the conditions indicated by “Yes” in the table below during still photo shooting (not
<p>
supported during movie recording).
<p>
* Cross-type can be performed in the whole focusing area.
<p>
* Cross-type does not function (vertical-line detection only) during movie recording, when using Preview AF, when using
<p>
Focus guide, when the image flickers under fluorescent lighting, LED lighting, or other flickering light sources, and
<p>
when operating the SA control ring of RF100mm F2.8 L MACRO IS USM.
</td>
</tr>
<tr>
<td>Number of AF zones
<p>
available for
<p>
Automatic Selection
</td>
<td>AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
<p>
(100% x 100% AF coverage in Face Detect + Tracking AF; coverage can vary, depending upon lens
<p>
being used)
<p>
Stills: Max. 1053 zones (39 x 27)
<p>
Movies: Max. 975 zones (39 x25)
</td>
</tr>
<tr>
<td>Selectable Positions
<p>
for AF Point
</td>
<td>AF area: Horizontal: Approx. 90% x Vertical: Approx. 100%
<p>
Stills: Max. 4897 positions (83 x 59)
<p>
Movies: Max 4067 positions (83 x 49)
</td>
</tr>
<tr>
<td>Focusing brightness
<p>
range
<p>
(still photo shooting)
</td>
<td>EV –7.5 to 21 (with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, and ISO 100)
<p>
* Except RF lenses with a Defocus Smoothing (DS) coating.
</td>
</tr>
<tr>
<td>Focusing brightness
<p>
range
<p>
(movie recording)
</td>
<td>4K30p: EV – 5.5 to 21
<p>
Full HD30p: EV – 5.5 to 21
<p>
(with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, ISO 100, and
<p>
29.97 / 25.00 fps.)
<p>
* Except RF lenses with a Defocus Smoothing (DS) coating
</td>
</tr>
<tr>
<td>Available AF Areas
</td>
<td>• Spot AF
<p>
• 1-point AF
<p>
• Expand AF area: Above/below/left/right
<p>
• Expand AF area: Around
<p>
• Flexible Zone AF 1
<p>
• Flexible Zone AF 2
<p>
• Flexible Zone AF 3
<p>
• Whole area AF
<p>
• Whole area tracking OFF Spot AF
<p>
• Whole area tracking OFF 1-point AF
<p>
• Whole area tracking OFF Expand AF area: Above/below/left/right
<p>
• Whole area tracking OFF Expand AF area: Around
</td>
</tr>
<tr>
<td>Available Subject
<p>
Detection
</td>
<td>• Auto
<p>
• People
<p>
• Animals (dogs / cats / birds / horses)
<p>
• Vehicles (motorsports cars or motorcycles / aircraft / trains)
<p>
* Certain types of animals or vehicles may not be detected, depending on shape and appearance
</td>
</tr>
<tr>
<td>Eye Detection
</td>
<td>Auto:
<p>
• Selects the eye closer to the camera (as detected from the angle of the face).
<p>
• At the same distance from the camera, selects the eye closer to the center of the image.
<p>
Right Eye:
<p>
• Prioritizes the subject’s right eye.
<p>
Left Eye:
<p>
• Prioritizes the subject’s left eye.
</td>
</tr>
</table>


<h5>Exposure Control</h5>



<table>
<tr>
<td>Metering Modes
</td>
<td>Real-time metering from CMOS image sensor (6144 [96x64] metering zones)
<p>
(1) Evaluative metering (AF point-linked)
<p>
(2) Partial metering (approx. 5.9% of the area at the center of the screen)
<p>
(3) Spot metering (approx. 3.0% of the area at the center of the screen)
<p>
(4) Center-weighted average metering
</td>
</tr>
<tr>
<td>Metering Range
</td>
<td>EV -3 – 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting)
</td>
</tr>
<tr>
<td>Exposure Modes
</td>
<td>Shooting Mode Name
<p>
Fv Flexible-priority AE
<p>
P Program AE
<p>
Av Aperture-priority AE
<p>
M Manual exposure
<p>
Tv Shutter-priority AE
<p>
BULB Bulb exposure
<p>
C1/C2/C3 Custom shooting
</td>
</tr>
<tr>
<td>ISO Speed Range
</td>
<td>Manually Set
<p>
Normal ISO 100–102400 (in 1/3- or 1-stop increments)
<p>
Expanded L (equivalent to ISO 50), H1 (equivalent to ISO 204800) and H2
<p>
(equivalent to ISO 409600)
<p>
* When set to [Highlight tone priority], the available manual setting range is ISO 200–102400.
<p>
* Expanded ISO speeds are not available when [HDR shooting (PQ): HDR PQ] is set.
<p>
ISO Auto range settings in still photo shooting
<p>
Auto Range ISO Speed
<p>
Minimum ISO 100–51200 (in 1-stop increments)
<p>
Maximum ISO 200–102400 (in 1-stop increments)
<p>
ISO Auto details in still photo shooting
<p>
No Flash Using Flash
<p>
Compatible Lens Incompatible Lens
<p>
ISO 100*1*2–102400*2 ISO 100*1*2–6400*2 ISO 100*1*2–1600*2
<p>
ISO 400*3 ISO 400*3
<p>
*1: ISO 200 when set to [Highlight tone priority: Enable/Enhanced].
<p>
*2: Varies depending on the [Maximum] and [Minimum] settings for [Auto range].
<p>
*3: If outside the setting range, changed to the value closest to ISO 400
</td>
</tr>
<tr>
<td>Exposure
<p>
Compensation
</td>
<td>User-set ±3 stops in 1/3- or 1/2-stop increments
<p>
AEB ±3 stops in 1/3- or 1/2-stop increments
</td>
</tr>
<tr>
<td>AE Lock
</td>
<td>(1) Auto AE lock
<p>
• AE is locked as soon as subjects are in focus using One-Shot AF when set to selected metering
<p>
mode in [C.Fn2: AE lock meter. mode after focus].
<p>
(2) User-set AE lock
<p>
• Use the AE lock button (update by pressing the button again) in Fv, P, Tv, Av, and M mode.
<p>
• Enabled in all metering modes.
</td>
</tr>
</table>


<h5>Shutter</h5>



<table>
<tr>
<td>Type
</td>
<td>Electronically controlled focal-plane shutter
<p>
(1) Electronic first curtain
<p>
(2) Mechanical shutter
<p>
(3) Electronic shutter*
<p>
* Cannot be used in conjunction with the following functions: flash photography, HDR shooting,
<p>
multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Digital Lens
<p>
Optimizer [High].
<p>
* A shutter release sound is not generated. However, note that the sounds other than the shutter
<p>
release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
<p>
* In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores-
<p>
cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference
<p>
may be recorded in the image.
</td>
</tr>
<tr>
<td>Shutter Speeds
</td>
<td>Mechanical / 1st-curtain Electronic shutter:
<p>
1/8000th sec – 30 seconds, in 1/3 or ½-step increments
<p>
Electronic shutter:
<p>
1/8000th sec – 30 seconds, in 1/3 or ½-step increments (1/16,000th possible, if user-set in Tv or M
<p>
shooting modes)
</td>
</tr>
<tr>
<td>X-sync Speed
</td>
<td>Mechanical Shutter: 1/200 sec.
<p>
Elec. 1st-curtain: 1/320 sec.
</td>
</tr>
<tr>
<td>Shutter Release
</td>
<td>Soft-touch electromagnetic release
</td>
</tr>
<tr>
<td>Self Timer
</td>
<td>10-sec. delay, 2-sec. delay, Continuous
</td>
</tr>
</table>


<h5>Image Stabilization (IS mode)</h5>



<table>
<tr>
<td>Still Photo IS
</td>
<td>In-body IS operation can be selected when using a non-IS lens.
<p>
• Always on
<p>
• Only for shot (no stabilization in viewfinder/LCD screen between shots)
<p>
Coordinated IS when used with Canon RF or RF-S lenses having optical Image Stabilization
</td>
</tr>
</table>


<h5>Drive System</h5>



<table>
<tr>
<td>Drive Modes and
<p>
Continuous Shooting
<p>
Speed
</td>
<td>Drive Modes Operating Modes Mechanical Shutter Electronic 1st curtain Electronic shutter
<p>
Single Shooting Yes Yes Yes
<p>
High-speed
<p>
Continuous
<p>
Shooting + *¹
<p>
Mode A Approx. 12 shots/sec.*²,
<p>
Approx. 40 shots/secMode B Approx. 9.2 shots/sec.*²
<p>
Mode C Approx. 6.6 shots/sec.
<p>
High-speed
<p>
Continuous
<p>
Shooting *¹
<p>
Mode A Approx. 5.5 shots/sec.*² Approx. 7.0 shots/sec.*²
<p>
Approx. 20 shots/secMode B Approx. 5.2 shots/sec.*² Approx. 6.6 shots/sec.*²
<p>
Mode C Approx. 3.5 shots/sec. Approx. 4.3 shots/sec.
<p>
Low-speed Continuous Shooting Approx. 3.0 shots/sec.*² Approx. 5 shots/sec
<p>
Self-timer: 10 sec / remote control Yes
<p>
Self-timer: 2 sec / remote control Yes
<p>
Self-timer: Continuous Yes
<p>
1. Continuous shooting speed is lower under certain shooting and measurement conditions: shutter speed, aperture
<p>
value subject conditions, brightness, type of lens, timing when internal memory becomes full (temporarily disables shoot-
<p>
ing)
<p>
- Mechanical / electronic 1st curtain: use of flash, anti-flicker shooting: Enable, type of battery, battery level, tempera-
<p>
ture, use of a battery grip, use of WFT, use of built-in Wi-Fi.
<p>
- Electronic shutter: State of aperture in continuous shooting
<p>
* With Certain lenses, zooming during continuous shooting with electronic shutter may cause changes in exposure even at
<p>
the same f/number.
<p>
2. Automatically switches among modes A (drive mode icon lit in green), B (drive mode icon lit in white), and C (drive mode
<p>
icon flashing in white). Operating Mode is for reference only — automatically set by camera, is dependent on factors such
<p>
as battery power level, battery type, and lens in use, and cannot be set by user.
<p>
* For flash shooting, values for AE, flash metering, and WB do not change after the first shot
</td>
</tr>
</table>


<h5>HDR Shooting</h5>



<table>
<tr>
<td>HDR Shooting (HDR PQ)
</td>
<td>Disable / Enable
</td>
</tr>
<tr>
<td>Still Photo HDR PQ
</td>
<td>Recording format Bit depth Color sampling method HDR specification
<p>
HEIF 10 bit YCbCr 4:2:2 ITU-R BT.2100 (PQ)
</td>
</tr>
<tr>
<td>Movie HDR PQ
</td>
<td>Recording format Bit depth Color sampling method HDR specification
<p>
mp4 10 bit YCbCr 4:2:2 ITU-R BT.2100 (PQ)
</td>
</tr>
<tr>
<td>Continuous HDR
<p>
Shooting (still images)
</td>
<td>1 shot only / Every shot
</td>
</tr>
</table>


<h5>Video Shooting</h5>



<table>
<tr>
<td>Shooting Times
</td>
<td>Resolution and
<p>
Frame Rate Mode Approx. Continuous Shooting Time*1,2,3
<p>
4K 59.94p
<p>
(without crop)
<p>
100% sensor width
<p>
(6K oversampling) 40 min. or longer
<p>
4K 59.94p (crop) APS-C Crop 50 min. or longer
<p>
4K 29.97p
<p>
(without crop)
<p>
100% sensor width
<p>
(6K oversampling) No limit with heating
<p>
Full HD 179.82p 100% sensor width 60 min. or longer
<p>
*¹ Time available for continuous shooting in 23°C / 73°F environment, from a cold start. If the camera is in LV mode standby
<p>
before shooting or the ambient temperature is high, the shooting time may be shorter.
<p>
*² According to Canon measurement conditions when using UHS-II cards conforming to Canon testing standards.
<p>
*³ The maximum duration of shooting may be shorter under some circumstances even if recording begins from "cold start," due
<p>
to a rise in temperature inside the camera caused by pre-shooting camera setting operations or by prolonged use of the Live
<p>
View mode. When the card is full, movie recording stops automatically. In this case, duration time when you erase the data and
<p>
restart shooting
</td>
</tr>
<tr>
<td>File Format
</td>
<td>Normal Movies
<p>
Canon Log OFF ON (Canon Log 3)
<p>
HDR PQ OFF ON OFF
<p>
Container format MP4
<p>
Bit depth 8 bit 10 bit
<p>
Compression H.264 / MPEG-4 AVC H.265 / HEVC
<p>
Video signal recording
<p>
range Full range (0-255) Full range (0-1023) Full range (128-1020)
<p>
Color sampling method YCbCr 4:2:0 YCbCr 4:2:2
<p>
Standards compliance Rec.ITU-R BT.709 Rec. ITU-R BT.2100 ―
<p>
Color gamut Rec.709 Rec.2020 Rec.709 / Rec.2020 /
<p>
Cinema Gamut
<p>
Audio
<p>
IPB
<p>
(Standard)* AAC / Linear PCM
<p>
IPB (Light) AAC
<p>
* Recording in AAC when [Audio compression] (C.Fn4) is set to [Enable] or Linear PCM when set to
<p>
[Disable].
</td>
</tr>
<tr>
<td>Estimated Recording
<p>
time, Movie Bit Rate
<p>
and File Size
</td>
<td>H.264/AVC (Canon Log: Off, HDR PQ: Off)
<p>
Video Recording Size
<p>
Total Recording Time (approx.) Bit Rate/File
<p>
Size (approx.)32 GB 128 GB 512 GB
<p>
4K UHD
<p>
4K UHD cropped
<p>
59.94 fps
<p>
50.00 fps
<p>
IPB (Standard) 18 min. 1 hr.14 min. 4 hr.56 min. 230 Mbps
<p>
1647 MB/min.
<p>
IPB (Light) 35 min. 2 hr. 21 min. 9 hr. 27 min. 120 Mbps
<p>
860 MB/min.
<p>
29.97 fps
<p>
25.00 fps
<p>
23.98 fps
<p>
IPB (Standard) 35 min. 2 hr. 21 min. 9 hr. 27 min. 120 Mbps
<p>
860 MB/min.
<p>
IPB (Light) 1 hr. 10 min. 4 hr. 43 min. 18 hr. 52 min. 60 Mbps
<p>
431 MB/min.
<p>
4K UHD
<p>
(Time-lapse movie)
<p>
29.97 fps
<p>
25.00 fps ALL-I 9 min. 36 min. 2 hr.25 min. 470 Mbps
<p>
3362 MB/min.
<p>
Full UHD
<p>
(High Frame Rate
<p>
movie)
<p>
172.82 fps
<p>
150.00 fps
<p>
IPB (Standard) 23 min. 1 hr.34 min. 6 hr.19 min. 180 Mbps
<p>
1287 MB/min
<p>
IPB (Light) 40 min. 2 hr.42 min. 10 hr.50 min. 105 Mbps
<p>
751 MB/min
<p>
119.88 fps
<p>
100.00 fps
<p>
IPB (Standard) 35 min. 2 hr. 22 min. 9 hr. 28 min. 120 Mbps
<p>
858 MB/min
<p>
IPB (Light) 1 hr. 0 min. 4 hr. 3 min. 16 hr. 15 min. 70 Mbps
<p>
501 MB/min
<p>
Full HD
<p>
Full HD cropped
<p>
59.94 fps
<p>
50.00 fps
<p>
IPB (Standard) 1 hr. 10 min. 4 hr. 43 min. 18 hr. 52 min. 60 Mbps
<p>
431 MB/min.
<p>
IPB (Light) 2 hr. 0 min. 8 hr. 3 min. 32 hr. 15 min. 35 Mbps
<p>
252 MB/min.
<p>
29.97 fps
<p>
25.00 fps
<p>
23.98 fps
<p>
IPB (Standard) 2 hr. 20 min. 9 hr. 23 min. 37 hr. 35 min. 30 Mbps
<p>
216 MB/min.
<p>
IPB (Light) 5 hr. 47 min. 23 hr. 11 min. 92 hr. 47 min. 12 Mbps
<p>
88 MB/min.
<p>
Full HD
<p>
(Time-lapse movie)
<p>
29.97 fps
<p>
25.00 fps ALL-I 47 min. 3 hr. 9 min. 12 hr. 38 min. 90 Mbps
<p>
644 MB/min.
<p>
* Bit rate only applies to video output, not audio or metadata.
<p>
* Audio is recorded when [C.Fn4 audio compression:Enable] (Audio: AAC) is set.
<p>
* Movie recording stops when the maximum recording time per movie is reached.
<p>
* No audio is recorded for approx. the last two frames with the compression method for movie recording quality set to IPB
<p>
(Standard) or IPB (Light) and the camera set to [C.Fn4 Audio compression: Enable]. Moreover, the video and sound may be
<p>
slightly out of sync when movies are played back in Windows.
<p>
* Mbps — megabits per second (8 megabits = 1 megabyte)
</td>
</tr>
<tr>
<td>Estimated Recording
<p>
Time, Continued
</td>
<td>H.265/HEVC (Canon Log: On or HDR PQ: On)
<p>
Video Recording Size
<p>
Total Recording Time (approx.) Bit Rate/File
<p>
Size (approx.)32 GB 128 GB 512 GB
<p>
4K UHD
<p>
4K UHD cropped
<p>
59.94 fps
<p>
50.00 fps
<p>
IPB (Standard) 12 min. 50 min. 3 hr. 20 min.. 340 Mbps
<p>
2434 MB/min.
<p>
IPB (Light) 25 min. 1 hr. 40 min. 6 hr. 40 min. 170 Mbps
<p>
1218 MB/min.
<p>
29.97 fps
<p>
25.00 fps
<p>
23.98 fps
<p>
IPB (Standard) 25 min. 1 hr. 40 min. 6 hr. 40 min. 170 Mbps
<p>
1218 MB/min.
<p>
IPB (Light) 50 min. 3 hr. 20 min. 13 hr. 20 min. 85 Mbps
<p>
610 MB/min.
<p>
4K UHD
<p>
(Time-lapse movie)
<p>
29.97 fps
<p>
25.00 fps ALL-I 9 min. 36 min. 2 hr.25 min. 470 Mbps
<p>
3362 MB/min.
<p>
Full UHD
<p>
(High Frame Rate
<p>
movie)
<p>
172.82 fps
<p>
150.00 fps
<p>
IPB (Standard) 15 min. 1 hr. 3 min. 4 hr. 12 min.. 270 Mbps
<p>
1931 MB/min
<p>
IPB (Light) 28 min. 1 hr. 53 min. 7 hr. 35 min. 150 Mbps
<p>
1073 MB/min
<p>
119.88 fps
<p>
100.00 fps
<p>
IPB (Standard) 23 min. 1 hr. 34 min. 6 hr. 19 min. 180 Mbps
<p>
1287 MB/min
<p>
IPB (Light) 42 min. 2 hr. 50 min. 11 hr. 22 min. 100 Mbps
<p>
715 MB/min
<p>
Full HD
<p>
Full HD cropped
<p>
59.94 fps
<p>
50.00 fps
<p>
IPB (Standard) 47 min. 3 hr. 9 min. 12 hr. 36 min. 90 Mbps
<p>
646 MB/min.
<p>
IPB (Light) 1 hr. 24 min. 5 hr. 39 min. 22 hr. 38 min. 50 Mbps
<p>
360 MB/min.
<p>
29.97 fps
<p>
25.00 fps
<p>
23.98 fps
<p>
IPB (Standard) 1 hr. 34 min. 6 hr. 17 min. 25 hr. 8 min. 45 Mbps
<p>
324 MB/min.
<p>
IPB (Light) 2 hr. 30 min. 10 hr. 3 min. 40 hr. 15 min. 28 Mbps
<p>
202 MB/min.
<p>
Full HD
<p>
(Time-lapse movie)
<p>
29.97 fps
<p>
25.00 fps ALL-I 31 min. 2 hr. 6 min. 8 hr. 25 min. 135 Mbps
<p>
966 MB/min.
<p>
* Bit rate only applies to video output, not audio or metadata.
<p>
* Audio is recorded when [C.Fn4 audio compression:Enable] (Audio: AAC) is set.
<p>
* Movie recording stops when the maximum recording time per movie is reached.
<p>
31 min.
<p>
* No audio is recorded for approx. the last two frames with the compression method for movie recording quality set to IPB
<p>
(Standard) or IPB (Light) and the camera set to [C.Fn4 Audio compression: Enable]. Moreover, the video and sound may be
<p>
slightly out of sync when movies are played back in Windows.
<p>
* Mbps — megabits per second (8 megabits = 1 megabyte)
</td>
</tr>
<tr>
<td>Card Performance
<p>
Requirements
</td>
<td>Movie Recording Size CFexpress card
<p>
Resolution Frame rate
<p>
(fps)
<p>
Compression
<p>
Method
<p>
H.264/ MPEG-4 AVC
<p>
(Canon Log: OFF, HDR
<p>
PQ: OFF)
<p>
H.264/ MPEG-4 AVC
<p>
(Canon Log: ON, HDR PQ:
<p>
ON)
<p>
4K UHD
<p>
4K UHD
<p>
Cropped
<p>
59.94 fps
<p>
50.00 fps
<p>
IPB (Standard) CFexpress 2.0
<p>
IPB (Light) CFexpress 2.0
<p>
29.97 fps
<p>
25.00 fps
<p>
23.98 fps
<p>
IPB (Standard) CFexpress 2.0
<p>
IPB (Light) CFexpress 2.0
<p>
4K UHD
<p>
(Time-lapse
<p>
movie)
<p>
29.97 fps
<p>
25.00 fps ALL-I CFexpress 2.0
<p>
Full HD High
<p>
Frame Rate
<p>
movies
<p>
179.82 fps
<p>
150.00 fps
<p>
IPB (Standard) CFexpress 2.0
<p>
IPB (Light) CFexpress 2.0
<p>
119.88 fps
<p>
100.00 fps
<p>
IPB (Standard) CFexpress 2.0
<p>
IPB (Light) CFexpress 2.0
<p>
Full HD
<p>
Full HD
<p>
cropped
<p>
59.94 fps
<p>
50.00 fps
<p>
IPB (Standard) CFexpress 2.0
<p>
IPB (Light) CFexpress 2.0
<p>
29.97 fps
<p>
25.00 fps
<p>
23.98 fps
<p>
IPB (Standard) CFexpress 2.0
<p>
IPB (Light) CFexpress 2.0
<p>
Full HD
<p>
(Time-lapse
<p>
movie)
<p>
29.97 fps
<p>
25.00 fps ALL-I CFexpress 2.0
</td>
</tr>
<tr>
<td>Video AF
</td>
<td>Dual Pixel CMOS AF; Movie Servo AF available in AF Menu
</td>
</tr>
<tr>
<td>Exposure
<p>
Compensation
</td>
<td>±3 stops in 1/3- or 1/2-stop increments
</td>
</tr>
<tr>
<td>Time Code
</td>
<td>Yes (Count up, Start time setting, Movie recording count, Movie play count, HDMI time code on/off,
<p>
HDMI rec. command on/off, Drop frame enable/disable)
</td>
</tr>
<tr>
<td>Movie Pre-recording
<p>
(On/Off)
</td>
<td>3 or 5 seconds; user-selectable
</td>
</tr>
<tr>
<td>Time-lapse Movie
<p>
Setting
</td>
<td>Interval 2 sec – 99:59:59; Number of frames 2–3,600; Movie recording size 4K/Full HD; Auto expo-
<p>
sure fixed @ first frame/auto for each frame; Beep per frame recorded (volume setting 0/silent – 5)
</td>
</tr>
<tr>
<td>Time-lapse Playback
<p>
Frame Rate
</td>
<td>29.97 (set to NTSC); 25.00fps (set to PAL)
</td>
</tr>
</table>


<h5>LCD Screen</h5>



<table>
<tr>
<td>Type
</td>
<td>TFT color, liquid-crystal monitor
</td>
</tr>
<tr>
<td>Monitor Size
</td>
<td>3.0-inch (screen aspect ratio of 3:2)
<p>
2.95 in./7.5cm diagonal (2.44 in./6.2cm width, 1.65 in./4.2cm height)
</td>
</tr>
<tr>
<td>Dots
</td>
<td>Approx. 2.1 million dots
</td>
</tr>
<tr>
<td>Coverage
</td>
<td>Approx. 100% vertically/horizontally
</td>
</tr>
<tr>
<td>Brightness Control
</td>
<td>Manually adjustable to one of seven brightness levels
</td>
</tr>
<tr>
<td>Touch-screen
<p>
Operation
</td>
<td>Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu;
<p>
Magnified view
</td>
</tr>
<tr>
<td>Coating
</td>
<td>Clear View LCD II
<p>
• Anti-smudge coating applied.
<p>
• Anti-reflection coating not applied
</td>
</tr>
<tr>
<td>Interface Languages
</td>
<td>29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian,
<p>
Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish,
<p>
Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)
</td>
</tr>
</table>


<h5>Playback</h5>



<table>
<tr>
<td>Display Format
</td>
<td>Item Still Photo Movie
<p>
Magnify zoom display 1.5x–10x (15 levels) -
<p>
AF point display Yes -
<p>
Grid display Off / 3×3 / 6×4 / 3×3+diag -
<p>
Zebra display - Yes
<p>
False Color display - Yes
<p>
Rating
<p>
OFF / 1 to 5 Stars
<p>
Select images / Select range / All images in folder / All images on card / All
<p>
found images
<p>
Image Search Search conditions
<p>
Rating / Date / Folder / Protection / Type of file
<p>
Protect Select images / Select range / All images in folder / Unprotect all images in
<p>
folder / All images on card / Unprotect all images on card / All found images
<p>
Shooting information
<p>
display
<p>
No information display / Basic information display / Detailed shooting
<p>
information display
</td>
</tr>
<tr>
<td>Highlight Alert
</td>
<td>White areas without image data blink in single-image display.
</td>
</tr>
<tr>
<td>Histogram
</td>
<td>Brightness / RGB
</td>
</tr>
</table>


<h5>Quick Control Function</h5>



<table>
<tr>
<td>Function
</td>
<td>The Quick Control screen can be accessed by pressing the Quick Control button during shooting,
<p>
recording, or playback
</td>
</tr>
<tr>
<td>Quick Control Screen
</td>
<td>The following settings are available for the [Quick Control screen] during movie recording.
<p>
• View 1: Conventional Quick Control screen
<p>
• View 2: Cinema EOS-style Quick Control screen
</td>
</tr>
</table>


<h5>Image Protection and Erase</h5>



<table>
<tr>
<td>Protection
</td>
<td>(1) Single image (select image)
<p>
(2) Select range
<p>
(3) All images in a folder
<p>
(4) All images on card
<p>
• Image browsing and image search can be based on ratings.
<p>
• Ratings-based image selections also possible with DPP.
<p>
(5) All found images (only during image search)
</td>
</tr>
<tr>
<td>Erase
</td>
<td>Except protected images
<p>
(1) Select images to erase
<p>
(2) Select range
<p>
(3) All images in folder
<p>
(4) All images on card
<p>
(5) All found images (only during image search)
</td>
</tr>
</table>


<h5>Wi-Fi</h5>



<table>
<tr>
<td>Standards Compliance
</td>
<td>IEEE 802.11b/g/n/a/ac/ax
</td>
</tr>
<tr>
<td>Transmission Method
</td>
<td>DS-SS modulation (IEEE 802.11b)
<p>
OFDM modulation (IEEE 802.11g/n/a/ac/ax)
<p>
OFDMA modulation (IEEE 802.11ax)
</td>
</tr>
<tr>
<td>Transition Frequency
<p>
(Central Frequency)
</td>
<td>2.4 GHz band
<p>
Frequency: 2412 to 2462 MHz
<p>
Channels: 1 to 11 channels
<p>
5.0 GHz band
<p>
Frequency: 5180 to 5825 MHz
<p>
Channels: 36 to 165 channels
<p>
6.0 GHz band
<p>
Frequency: 5955 to 7095 MHz
<p>
Channels: 1 to 229 channels
</td>
</tr>
<tr>
<td>Connection Method
</td>
<td>(1) Camera access point mode
<p>
(2) Infrastructure mode
</td>
</tr>
<tr>
<td>Security
</td>
<td>2.4 GHz band / 5 GHz band
<p>
Connection Method Authentication Encryption
<p>
Encryption Key Format and Length
<p>
Camera Access Point WPA2 / WPA3-Personal AES • ASCII 8 characters
<p>
Open Disable
<p>
Infrastructure
<p>
Open Disable
<p>
Enhanced open AES • ASCII 8 characters
<p>
WPA / WPA2 / WPA3-Personal AES 1–127 characters
<p>
WPA / WPA2 / WPA3-Enterprise AES ―
<p>
WPA3-Enterprise 192 bit AES ―
<p>
6 GHz band
<p>
Connection Method Authentication Encryption
<p>
Encryption Key Format and Length
<p>
Infrastructure
<p>
Enhanced open AES ―
<p>
WPA3-Personal AES 1–127 characters
<p>
WPA3-Enterprise AES ―
<p>
WPA3-Enterprise 192 bit AES ―
</td>
</tr>
<tr>
<td>Communication with a
<p>
Smartphone
</td>
<td>• Images can be viewed, controlled, and received using a smartphone.
<p>
• Remote control of the camera using a smartphone is possible depending on the Camera Connect
<p>
specifications.
<p>
• Images can be sent to a smartphone.
<p>
• NFC connection: Not supported
<p>
• Supported images: JPEG, HEIF, RAW/C-RAW, MP4 video files
<p>
• Transcoding while sending: Size to send (original / reduced size); Quality to send (original / com-
<p>
pressed)
</td>
</tr>
<tr>
<td>Remote Operation
<p>
Using EOS Utility
</td>
<td>The camera can be controlled via Wi-Fi® or USB, with Canon EOS Utility software installed in a com-
<p>
patible Mac or Windows computer
</td>
</tr>
<tr>
<td>Print from Wi-Fi®
<p>
Printers
</td>
<td>Not supported
</td>
</tr>
<tr>
<td>Send Images to a Web
<p>
Service
</td>
<td>image.canon: Video files (MP4) and JPEG, HEIF, RAW or C-RAW still images can be uploaded to
<p>
image.canon servers.
<p>
From image.canon, images can be sent to specific social media and 3rd-party cloud image services
</td>
</tr>
</table>


<h5>Bluetooth</h5>



<table>
<tr>
<td>Standards Compliance
</td>
<td>Bluetooth Specification Version 5.3 compliant (Bluetooth Low Energy technology)
</td>
</tr>
<tr>
<td>Transmission Method
</td>
<td>GFSK modulation
</td>
</tr>
<tr>
<td>Bluetooth Pairing
</td>
<td>Smartphone — up to 25 devices; BR-E1 remote controller — 1 unit
</td>
</tr>
</table>


<h5>Interface</h5>



<table>
<tr>
<td>USB Terminal
</td>
<td>Equivalent to SuperSpeed Plus USB (USB 3.2 Gen 2)
<p>
• For PC communication; video calls/streaming
<p>
• Terminal type: USB Type-C
<p>
• Shared with terminal for in-camera charging with USB Power Adapter PD-E1
</td>
</tr>
<tr>
<td>HDMI Out Termina
</td>
<td>HDMI output terminal (Type A)
<p>
• HDMI CEC not supported
<p>
• Images may not be displayed unless [For NTSC] or [For PAL] is set correctly
<p>
for the TV video system
</td>
</tr>
<tr>
<td>Clean HDMI Output
</td>
<td>Provided
</td>
</tr>
<tr>
<td>Microphone terminal
</td>
<td>3.5mm diameter stereo mini jack
</td>
</tr>
<tr>
<td>Headphone terminal
</td>
<td>Compatible with 3.5mm diameter stereo mini-plug
</td>
</tr>
</table>


<h5>Power Source</h5>



<table>
<tr>
<td>Battery
</td>
<td>LP-E19
<p>
* LP-E4N / LP-E4 cannot be used. Unauthenticated batteries can also be used,
<p>
but safety cannot be guaranteed
</td>
</tr>
<tr>
<td>Optional Battery Grip
</td>
<td>Not supported
</td>
</tr>
<tr>
<td>Battery Check
</td>
<td>Automatic battery check with 6-level display when the power switch is turned ON.
<p>
Displayed in 6 levels in viewfinder, and on LCD screen.
<p>
Battery info display in Set-up Menu:
<p>
• Remaining capacity percentage
<p>
• Shutter count, on current battery charge
<p>
• Recharge performance (battery's ability to hold charge; displayed in 3 levels)
</td>
</tr>
<tr>
<td>Start-up Time
</td>
<td>Approx. 0.4 sec.
<p>
• Based on CIPA testing standards
</td>
</tr>
</table>


<h5>Dimensions and Weight</h5>



<table>
<tr>
<td>Dimensions
<p>
(W x H x D)
</td>
<td>Approx. 6.2 x 5.89 x 3.44 in. / 157.6 x 149.5 x 87.3mm
<p>
• Based on CIPA standards.
</td>
</tr>
<tr>
<td>Weight
</td>
<td>Approx. 2.5 lbs. / 1115g (including battery and memory card)
<p>
Approx. 2.0 lbs. / 920g (body only; without battery, card or body cap
</td>
</tr>
</table>


<h5>Operating Environment</h5>



<table>
<tr>
<td>Working Temperature
<p>
Range
</td>
<td>32–113°F / 0–45°C
</td>
</tr>
<tr>
<td>Working Humidity
<p>
Range
</td>
<td>85% or less
</td>
</tr>
</table>
