Canon | SKU: 6389C002

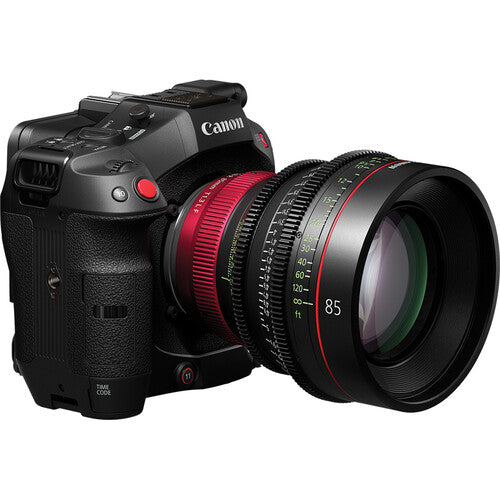

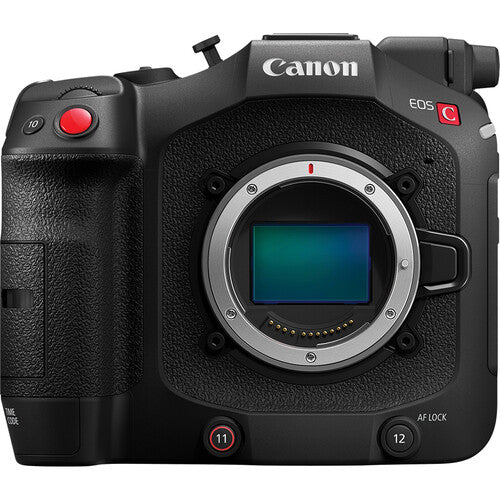

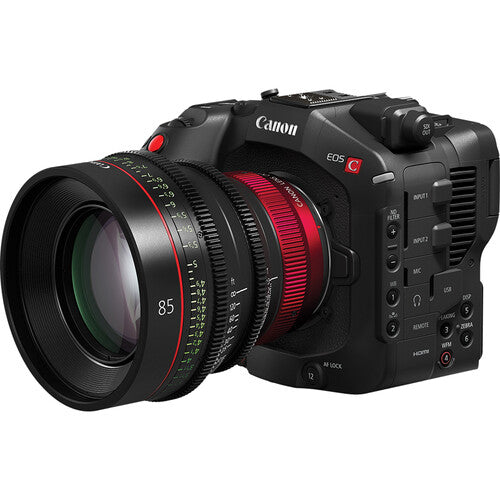

Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)

Name: Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)
Brand: Canon
SKU: 6389C002
Price: 5499.0 USD
Availability: InStock

$5,499.00

Shipping calculated at checkout.

Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF) is backordered and will ship as soon as it is back in stock.

Pre-order now to make sure you don't miss out!

As soon as it's in stock, we will ship it to you.

Get Notified

6K FF Back-Illuminated CMOS Sensor,
6K30/DCI 4K/2K/UHD 4K120 S35 Recording,
Full Frame and Super35 Modes,
12G-SDI and HDMI Simultaneous Output,
Triple-Base ISO: 800/3200/12,800,
Cinema Raw Light LT/HEVC/AVC Codecs,
16+ Stops of Total Dynamic Range,
Dual-Pixel CMOS AF II/Built-In NDs,
1 x BNC Timecode, 2 x Mini-XLR Audio In,
2 x SD Card Slots, LUT/Long GOP Support

<h5>Imaging</h5>

<table>
<tr>
<td>Lens Mount
</td>
<td>Canon RF
</td>
</tr>
<tr>
<td>Lens Communication
</td>
<td>Yes, Cooke /i
</td>
</tr>
<tr>
<td>Sensor Resolution
</td>
<td>Actual: 26.67 Megapixel (6202 x 4300)
<p>
Effective: 19.05 Megapixel (6008 x 3170)
</td>
</tr>
<tr>
<td>Image Sensor
</td>
<td>Full-Frame BSI Stacked CMOS
</td>
</tr>
<tr>
<td>Image Stabilization
</td>
<td>Digital, 5-Axis
</td>
</tr>
<tr>
<td>Built-In ND Filter
</td>
<td>Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
</td>
</tr>
<tr>
<td>Internal Filter Holder
</td>
<td>No
</td>
</tr>
<tr>
<td>Capture Type
</td>
<td>Stills & Video
</td>
</tr>
</table>

<h5>Exposure Control</h5>

<table>
<tr>
<td>Shutter Type
</td>
<td>Electronic Rolling Shutter
</td>
</tr>
<tr>
<td>Shutter Speed
</td>
<td>1/2000 to 1 Second
</td>
</tr>
<tr>
<td>ISO Sensitivity Range
</td>
<td>100 to 102,400
</td>
</tr>
<tr>
<td>Shutter Angle
</td>
<td>11.25 to 360°
</td>
</tr>
<tr>
<td>Advertised Dynamic Range
</td>
<td>16 Stops
</td>
</tr>
<tr>
<td>Signal-to-Noise Ratio
</td>
<td>67 dB
</td>
</tr>
<tr>
<td>White Balance
</td>
<td>2000 to 15,000K
<p>
Presets: AWB, Daylight, Set A, Set B, Tungsten
</td>
</tr>
</table>

<h5>Video Capture</h5>

<table>
<tr>
<td>Internal Recording Modes
</td>
<td>Cinema RAW Light 12-Bit
<p>
UHD 6K (6000 x 3164) from 1 to 29.97 fps [553 to 639 Mb/s VBR]
<p>
4368 x 2304 from 1 to 29.97 fps [678 Mb/s VBR]
<p>
XF-AVC Intra 4:2:2 10-Bit
<p>
4096 x 2160 from 1 to 60.00 fps [240 to 600 Mb/s VBR]
<p>
3840 x 2160 from 1 to 60.00 fps [240 to 600 Mb/s VBR]
<p>
2048 x 2160 from 1 to 120 fps [120 to 300 Mb/s VBR]
<p>
1920 x 1080 from 1 to 120 fps [120 to 300 Mb/s VBR]
<p>
XF-AVC Long GOP 4:2:2 10-Bit
<p>
4096 x 2160 from 1 to 120 fps [130 to 250 Mb/s VBR]
<p>
3840 x 2160 from 1 to 120 fps [130 to 250 Mb/s VBR]
<p>
2048 x 1080 from 1 to 180 fps [50 Mb/s VBR]
<p>
1920 x 1080 from 1 to 180 fps [25 to 50 Mb/s VBR]
<p>
XF-AVC S Intra 4:2:2 10-Bit
<p>
4096 x 2160 from 1 to 60.00 fps [240 to 1200 Mb/s VBR]
<p>
3840 x 2160 from 1 to 60.00 fps [240 to 1200 Mb/s VBR]
<p>
2048 x 1080 from 1 to 120 fps [120 to 300 Mb/s VBR]
<p>
1920 x 1080 from 1 to 120 fps [120 to 300 Mb/s VBR]
<p>
XF-AVC S Long GOP 4:2:2 10-Bit
<p>
4096 x 2160 from 1 to 120 fps [150 to 250 Mb/s VBR]
<p>
3840 x 2160 from 1 to 120 fps [150 to 250 Mb/s VBR]
<p>
2048 x 1080 from 1 to 180 fps [50 Mb/s VBR]
<p>
1920 x 1080 from 1 to 180 fps [50 Mb/s VBR]
<p>
XF-AVC S Long GOP 4:2:0 8-Bit
<p>
4096 x 2160 from 1 to 120 fps [100 to 150 Mb/s VBR]
<p>
3840 x 2160 from 1 to 120 fps [100 to 150 Mb/s VBR]
<p>
2048 x 1080 from 1 to 180 fps [35 Mb/s VBR]
<p>
1920 x 1080 from 1 to 180 fps [35 Mb/s VBR]
<p>
XF-HEVC S Long GOP 4:2:2/4:2:0 10-Bit
<p>
4096 x 2160 from 1 to 120 fps [135 to 225 Mb/s VBR]
<p>
3840 x 2160 from 1 to 120 fps [135 to 225 Mb/s VBR]
<p>
2048 x 1080 from 1 to 120 fps [35 Mb/s VBR]
<p>
1920 x 1080 from 1 to 120 fps [35 Mb/s VBR]
</td>
</tr>
<tr>
<td>External Recording Modes
</td>
<td>SDI/BNC / HDMI / USB
<p>
4096 x 2160
</td>
</tr>
<tr>
<td>Recording Sensor Crop
</td>
<td>Crops to Output Resolution When Using Super35 Mode
</td>
</tr>
<tr>
<td>Fast-/Slow-Motion Support
</td>
<td>Yes
</td>
</tr>
<tr>
<td>Gamma Curve
</td>
<td>Canon Log 2, Canon Log 3, HDR-HLG, Rec709, Rec2020
</td>
</tr>
<tr>
<td>Broadcast Output
</td>
<td>NTSC/PAL
</td>
</tr>
<tr>
<td>Built-In Microphone
</td>
<td>Stereo
</td>
</tr>
<tr>
<td>Audio Recording
</td>
<td>Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio
<p>
XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio
<p>
XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio
<p>
XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio
</td>
</tr>
<tr>
<td>IP Streaming
</td>
<td>H.264, MPEG2, RTP, RTSP, SRT, UDP
<p>
1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)
</td>
</tr>
</table>

<h5>Still Image Capture / Interface</h5>

<table>
<tr>
<td>Image File Format
</td>
<td>JPEG
</td>
</tr>
<tr>
<td>Media/Memory Card Slot
</td>
<td>Slot 1: SD/SDHC/SDXC
<p>
Slot 2: SD/SDHC/SDXC
</td>
</tr>
<tr>
<td>Video I/O
</td>
<td>1x BNC (12G-SDI) Output
<p>
1x BNC (3G-SDI) Monitor Output
<p>
1x HDMI (Unspecified Signal) Output
</td>
</tr>
<tr>
<td>Audio I/O
</td>
<td>2x Mini XLR Input
<p>
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
<p>
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
</td>
</tr>
<tr>
<td>Power I/O
</td>
<td>1x Barrel (23.7 to 25VDC) Input
</td>
</tr>
<tr>
<td>Other I/O
</td>
<td>1x RJ45 (XC) Control
<p>
1x USB-C Monitor
<p>
1x BNC (Timecode)
<p>
1x 2.5 mm Sub-Mini (LANC) Control
</td>
</tr>
<tr>
<td>Wireless
</td>
<td>2.4 / 5 GHz Wi-Fi 5 (802.11ac)
</td>
</tr>
<tr>
<td>Mobile App Compatible
</td>
<td>Yes: iOS Only
<p>
App Name: Remote Camera Control App
<p>
Functionality: Adjust Settings, Remote Control, View Live Feed
</td>
</tr>
<tr>
<td>Global Positioning (GPS, GLONASS, etc.)
</td>
<td>No
</td>
</tr>
</table>

<h5>Monitor</h5>

<table>
<tr>
<td>Display Type
</td>
<td>Included External Touchscreen LCD
</td>
</tr>
<tr>
<td>Display Size
</td>
<td>3.5"
</td>
</tr>
<tr>
<td>Resolution
</td>
<td>1280 x 720
</td>
</tr>
</table>

<h5>Focus</h5>

<table>
<tr>
<td>Focus Type
</td>
<td>Auto & Manual
</td>
</tr>
<tr>
<td>Focus Mode
</td>
<td>Continuous-Servo AF, Focus Lock AF Area Mode, One-Shot AF
</td>
</tr>
</table>

<h5>General</h5>

<table>
<tr>
<td>Operating Conditions
</td>
<td>32 to 104°F / 0 to 40°C up to 85% Humidity
</td>
</tr>
<tr>
<td>Storage Conditions
</td>
<td>23 to 113°F / -5 to 45°C up to 60% Humidity
</td>
</tr>
<tr>
<td>Battery Type
</td>

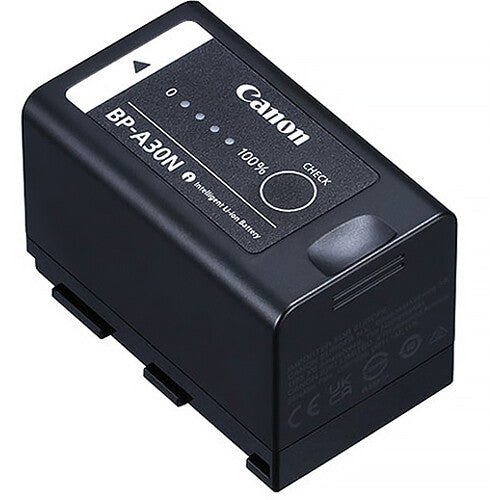

<td>Canon BP-AN Series
</td>
</tr>
<tr>
<td>Shoe Mount
</td>
<td>1x Intelligent Hot Shoe
</td>
</tr>
<tr>

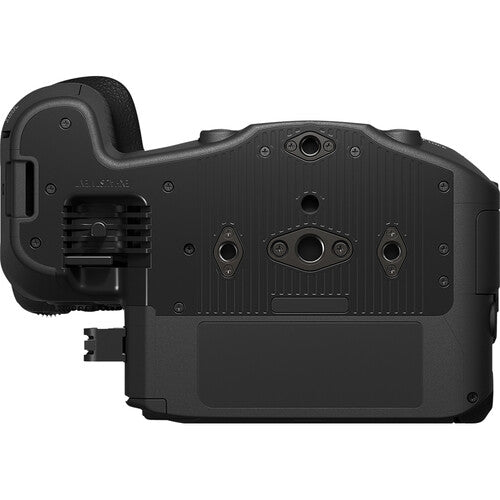

<td>Tripod Mounting Thread
</td>
<td>1x 3/8"-16 Female
<p>
2x 1/4"-20 Female
</td>
</tr>
<tr>
<td>Dimensions (W x H x D)
</td>
<td>6.3 x 5.4 x 4.6" / 160 x 138 x 116 mm
<p>
10.9 x 6.8 x 6.3" / 276 x 173 x 160 mm (With Handle, Included Battery, Mic Holder)
</td>
</tr>
<tr>
<td>Weight
</td>
<td>2.89 lb / 1.31 kg (Body Only)
<p>
3.406 lb / 1.545 kg (With Battery, Handle)
</td>
</tr>
</table>

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Buy now pay later with ShopPay

	6K Full Frame Back-illuminated Stacked CMOS Sensor The EOS C80 is equipped with a 6K back-illuminated stacked full-frame CMOS sensor, providing exceptional low-noise performance that allows the camera to excel in diverse lighting conditions while maximizing its dynamic range. This new sensor offers faster readout speeds compared to previous EOS models and, thanks to its advanced architecture, increases light-capturing efficiency. The result is improved sensitivity and enhanced 4K image quality through 6K oversampling, delivering sharper, more detailed visuals than front-illuminated CMOS sensors.

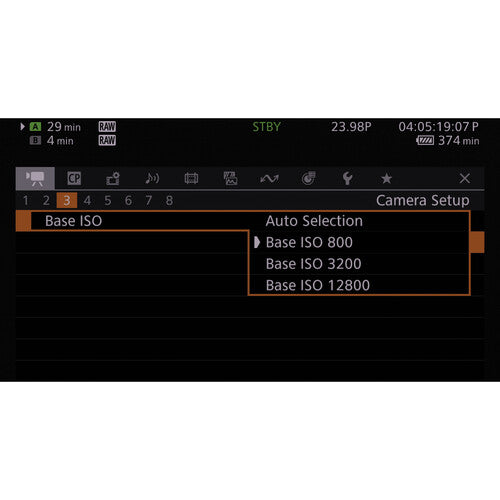

Triple Base ISO (800, 3200 and 12,800) The EOS C80’s full-frame 6K back-illuminated stacked sensor features triple-base ISO, enabling stunning imagery across various lighting conditions. With base ISOs of 800, 3200, and 12,800, you can fully maximize the sensor's dynamic range whether shooting in bright or low-light environments.

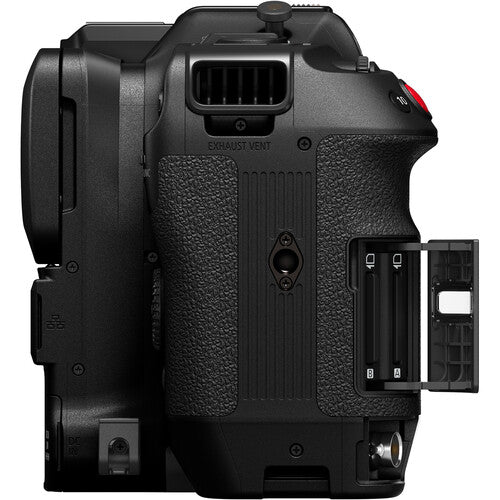

	Dual SD Card Slots The EOS C80 comes equipped with dual SD card slots that support simultaneous recording and multiple recording modes, including backup or proxy file recording, different formats and resolutions, and relay recording for extended shoots. The slots are compatible with SD UHS-II, V90-class cards.
Dual Pixel CMOS AF II The EOS C80 features Canon’s next-generation Dual Pixel CMOS Autofocus, Dual Pixel CMOS AF II. Its back-illuminated stacked sensor enhances light-capturing efficiency, expanding the autofocus coverage across a larger area of the sensor.
	EOS iTR AF X (People Detection) Dual Pixel CMOS AF II delivers exceptional speed, precision, and wide autofocus coverage, utilizing the EOS Intelligent Tracking and Recognition (iTR AF X) algorithm, enhanced with deep learning technology. This system enables advanced detection of human subjects, not only tracking eyes, faces, and heads but also recognizing and following entire bodies with remarkable accuracy.
12G-SDI and a Variety of Interfaces The EOS C80 offers a wide range of interfaces, making it highly adaptable for various production needs. It features built-in 12G or 3G SDI and a second full-sized BNC output for Time Code, allowing secure, uncompressed video signal transfer. Additional interfaces include two three-pin mini-XLR audio inputs (INPUT 1 and INPUT 2), a 3.5mm stereo mini-jack Microphone terminal, a 2.5mm stereo mini-mini REMOTE terminal, and a full-size HDMI (Type A) output.

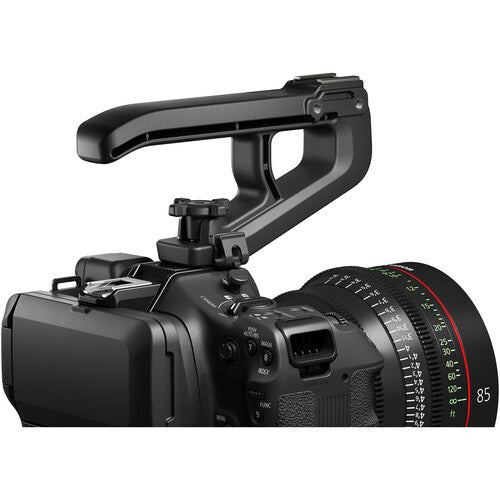

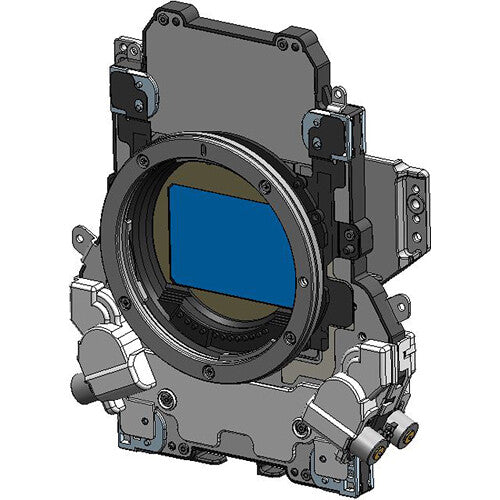

	Improved Body Design, Compact and Lightweight The EOS C80 features a compact mechanical ND filter assembly tailored for the RF mount's short flange back, with convenient buttons for direct ND filter control on the right-hand side of the camera. Offering up to ten stops of ND filtration, it enables users to shoot in diverse lighting conditions while adjusting exposure without compromising depth of field.

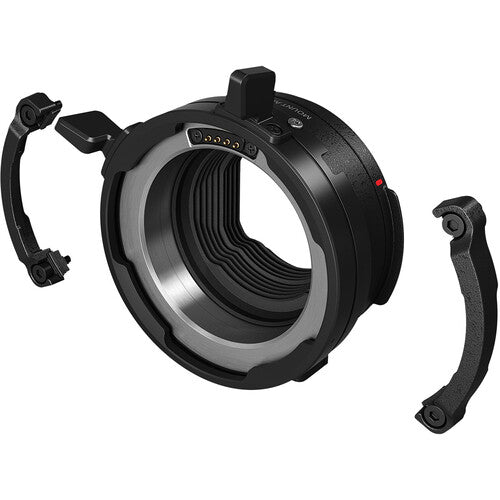

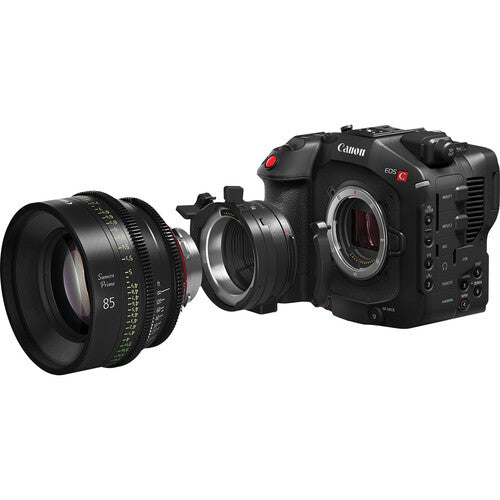

Mount Adapter PL-RF with Cooke/i Technology Compatibility The Mount Adapter PL-RF, new to the RF ecosystem, unlocks a broad assortment of PL mount lenses for Canon’s RF cameras. The adapter is compatible with Cooke/i Technology’s metadata protocol and includes lock plates to ensure a secure lens mount.
	Canon Multi-Camera Control App The EOS C80 is fully compatible with the Canon Multi-Camera Control App for iPhone, allowing operators to remotely control recording start/stop, focus, zoom, iris, ND filters, ISO, shutter, white balance, custom picture settings, and more, all while monitoring the live camera feed.
Remote Control Camera Application The EOS C80’s built-in Ethernet and Wi-Fi connectivity allows centralized control through the Remote Camera Control Application (RCCA), enabling simultaneous control of up to nine cameras for multi-camera operations. At a production or broadcast site, operators can select a camera from the "Connected Camera List" displayed in the application and control it via the "Camera Control Area" within the software's control panel. The included software can be installed immediately, eliminating the need for a hardware controller and simplifying one-person operation.
